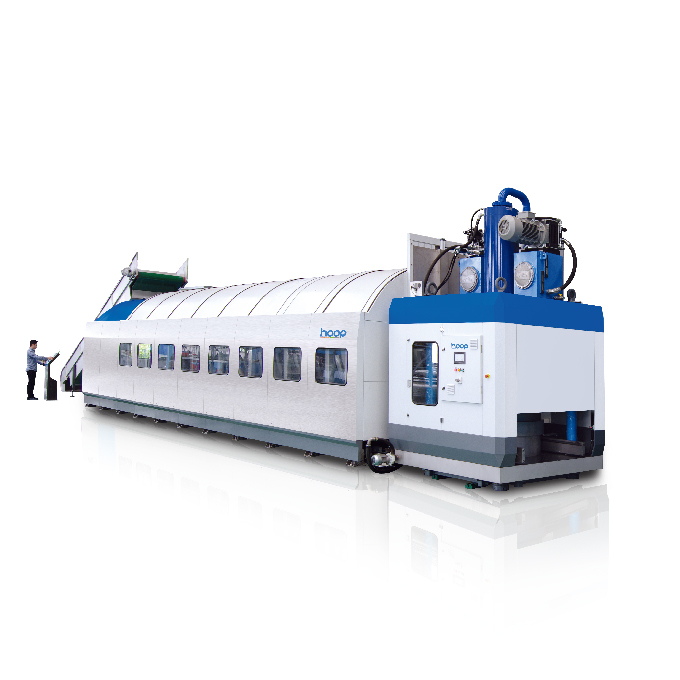

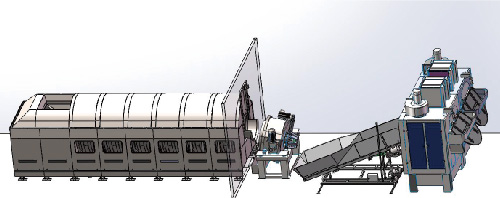

FW Series Tunnel-type Washing Machine (Laundry Dragon)
Fw Series Tunnel-type Washing Machine (Laundry Dragon)
◎ The tunnel washing machine is referred to as the tunnel wash. The washing process is the perfect combination of automation, integration, and water energy recycling, sewage reduction and cleaner production; greatly reduces water consumption and steam consumption; can save 70% More than 60%, saving 80% of manpower, representing a more “energy saving, environmental protection, and efficient” direction of development.
◎ From the European technology, simple structure, easy operation and maintenance;
◎ Each bin has a liner, the flexibility to set the residue of the detergent and steam;
◎ Linen at the bottom of transmission, reduce clove jam, pull broken;
◎ Inner drum and aisle with a small hole drainage, reverse flow design, to avoid cloth grass color.
Project |
Unit |
FW75-5 |
Fw75-6 |
FW75-7 |
FW75-8 |
FW75-9 |
FW75-10 |
Number Of Modules |
Mudules |
5 |
6 |
7 |
8 |
9 |
10 |
Maximum Wash Volume |
Kg/h |
1071 |
1286 |
1500 |
1714 |
1929 |
2143 |
Diameter Of The Cage |
Mm |
2010 |
2010 |
2010 |
2010 |
2010 |
2010 |
Depth Of The Cage |
Mm |
820 |
820 |
820 |
820 |
820 |
820 |
Volume |
Dm3 |
2670 |
2670 |
2670 |
2670 |
2670 |
2670 |
Capacity |
Kg |
60-75 |
60-75 |
60-75 |
60-75 |
60-75 |
60-75 |
Speed |
Rmp |
11-18 |
11-18 |
11-18 |
11-18 |
11-18 |
11-18 |
Power |
Kw |
225 |
26.15 |
30.9 |
35.65 |
39.5 |
43.15 |
Power Consumption |
Kw/h |
13.14 |
15.34 |
18.13 |
20.91 |
23.11 |
25.31 |
Length |
Mm |
7580 |
8580 |
9580 |
10580 |
11580 |
12580 |
Width |
Mm |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
Height |
Mm |
3345 |
3345 |
3345 |
3345 |
3345 |
3345 |
Weight |
kg |
6050 |
7050 |
8050 |
9050 |
10050 |
11050 |
Note:The above specifications are subject to change without notice.
