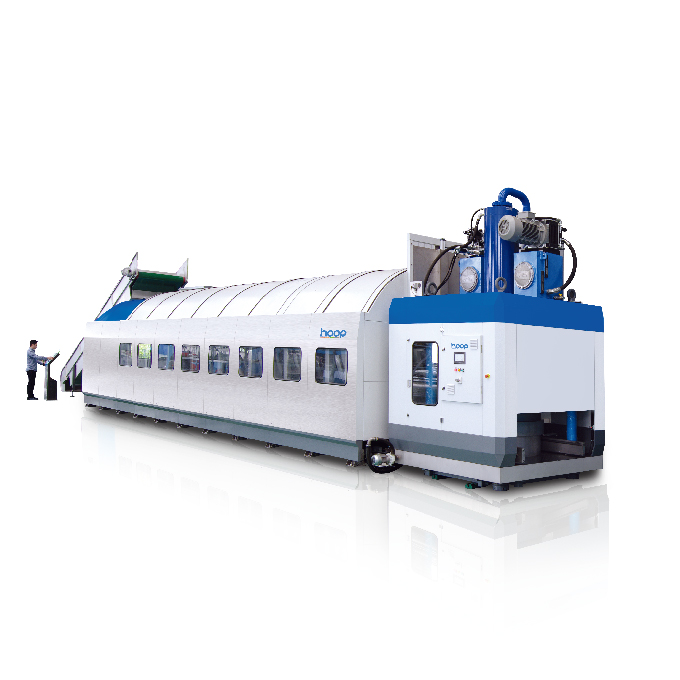

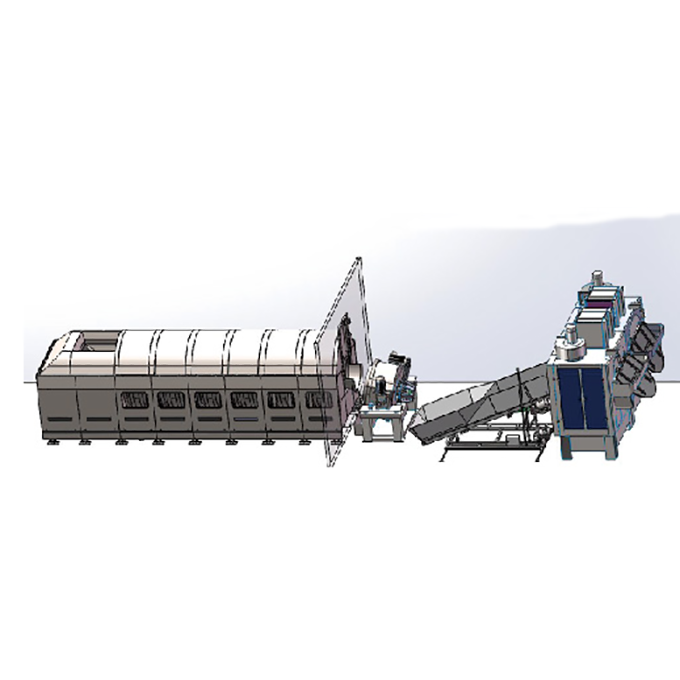

FW Series Tunnel-type Washing Machine (Laundry Dragon)
Fw Series Tunnel-type Washing Machine (Laundry Dragon)
◎ The tunnel washing machine is referred to as the tunnel wash. The washing process is the perfect combination of automation, integration, and water energy recycling, sewage reduction and cleaner production; greatly reduces water consumption and steam consumption; can save 70% More than 60%, saving 80% of manpower, representing a more “energy saving, environmental protection, and efficient” direction of development.
◎ From the European technology, simple structure, easy operation and maintenance;
◎ Each bin has a liner, the flexibility to set the residue of the detergent and steam;
◎ Linen at the bottom of transmission, reduce clove jam, pull broken;
◎ Inner drum and aisle with a small hole drainage, reverse flow design, to avoid cloth grass color.
Note:The above specifications are subject to change without notice.
Project | Unit | FW75-5 | Fw75-6 | FW75-7 | FW75-8 | FW75-9 | FW75-10 |
Number Of Modules | Mudules | 5 | 6 | 7 | 8 | 9 | 10 |
Maximum Wash Volume | Kg/h | 1071 | 1286 | 1500 | 1714 | 1929 | 2143 |
Diameter Of The Cage | Mm | 2010 | 2010 | 2010 | 2010 | 2010 | 2010 |
Depth Of The Cage | Mm | 820 | 820 | 820 | 820 | 820 | 820 |
Volume | Dm3 | 2670 | 2670 | 2670 | 2670 | 2670 | 2670 |
Capacity | Kg | 60-75 | 60-75 | 60-75 | 60-75 | 60-75 | 60-75 |
Speed | Rmp | 11-18 | 11-18 | 11-18 | 11-18 | 11-18 | 11-18 |
Power | Kw | 225 | 26.15 | 30.9 | 35.65 | 39.5 | 43.15 |
Power Consumption | Kw/h | 13.14 | 15.34 | 18.13 | 20.91 | 23.11 | 25.31 |
Length | Mm | 7580 | 8580 | 9580 | 10580 | 11580 | 12580 |
Width | Mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
Height | Mm | 3345 | 3345 | 3345 | 3345 | 3345 | 3345 |
Weight | kg | 6050 | 7050 | 8050 | 9050 | 10050 | 11050 |
